500 Series Dead Centre

Enquire about this product →

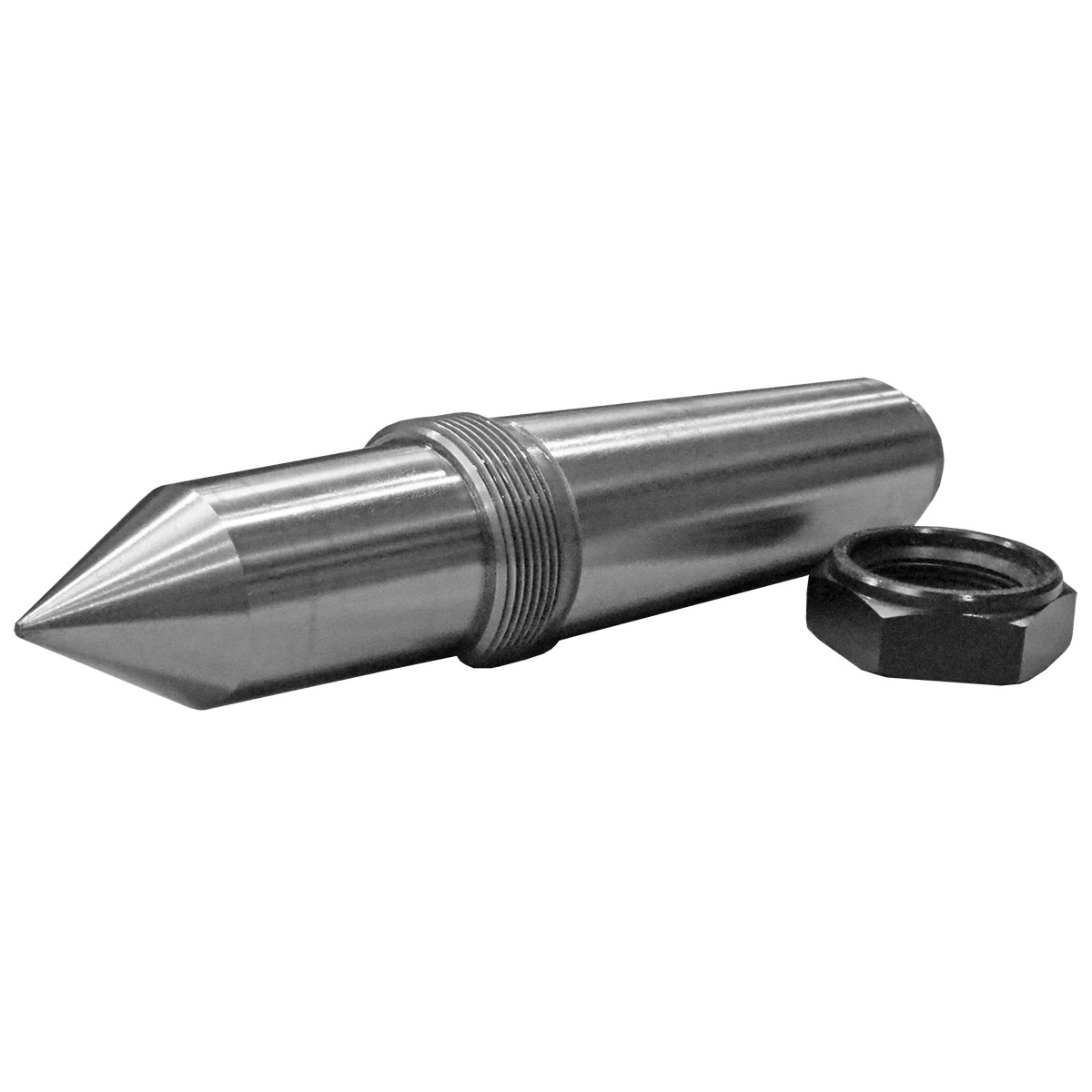

500 series 60 Degree Dead Centres are our heavy duty range. These are a high load, heavy duty centre.

Category:

Description

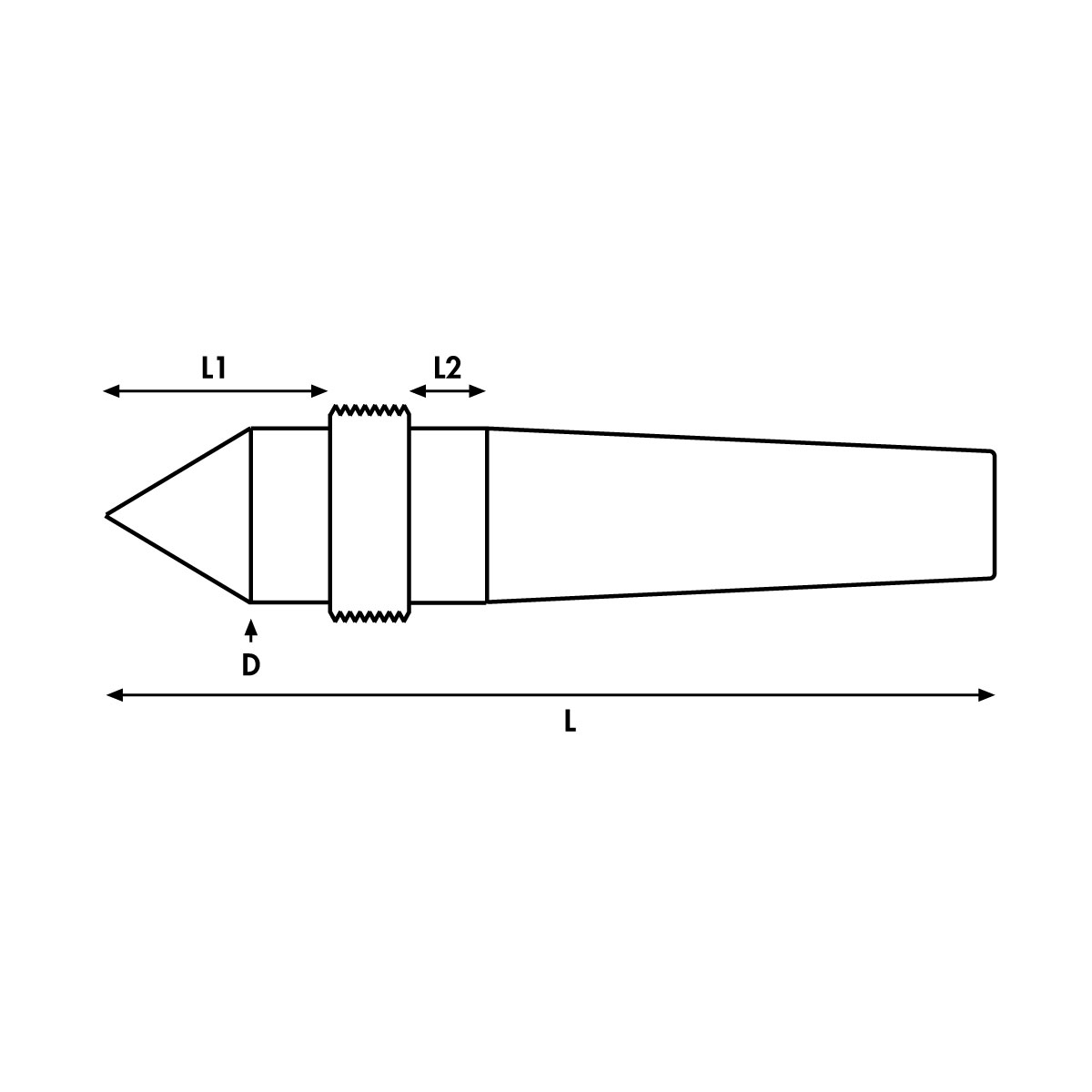

PART MT D L L1 L2 APP. WT
DC503 3 20 (0.78) 128 (5.05) 28 (1.11) 10 (0.39) 0.5KG (1.10lb)
DC504 4 30 (1.19) 158 (6.22) 37 (1.45) 10 (0.39) 1.0KG (2.20lb)
DC505 5 40 (1.58) 187 (7.36) 35 (1.38) 10 (0.39) 2.5KG (5.51lb)
DC506 6 64 (2.52) 264 (10.39) 65 (2.56) 10 (0.39) 7.1KG (15.65lb)
DC507 7 80 (3.16) 400 (15.75) 85 (3.34) 15 (0.59) 10.0KG (22.05lb)
